A structural column receives a protective layer of seven-eighths-inch plywood that is glued and mechanically fastened to build out the profile. A layer of five-eighths-inch gypsum board is then wrapped around the entire assembly to achieve the finished architectural casing.

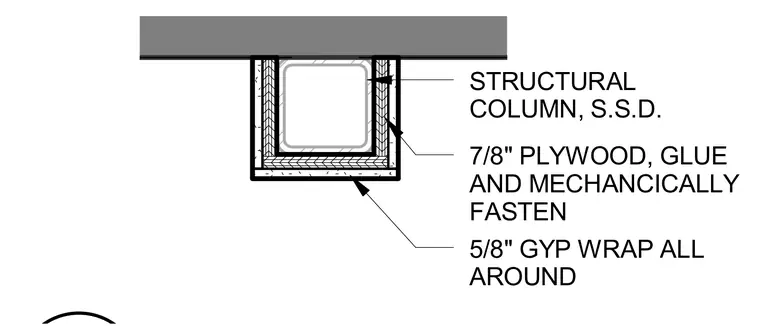

STRUCTURAL COLUMN, S.S.D. 7/8" PLYWOOD, GLUE AND MECHANCICALLY FASTEN 5/8" GYP WRAP ALL AROUND
