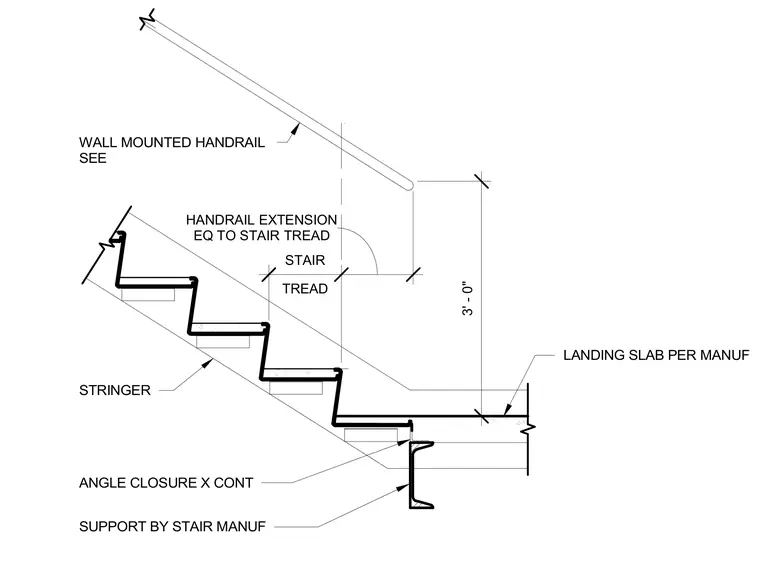

A continuous steel stringer supports formed stair treads transitioning to a three-foot landing slab. An angle closure is provided continuously at the slab edge above a support furnished by the stair manufacturer. A wall-mounted handrail is positioned above with a handrail extension aligned equal to the stair tread.
TREAD STAIR EQ TO STAIR TREAD HANDRAIL EXTENSION WALL MOUNTED HANDRAIL SEE 3' - 0" LANDING SLAB PER MANUF STRINGER SUPPORT BY STAIR MANUF ANGLE CLOSURE X CONT
