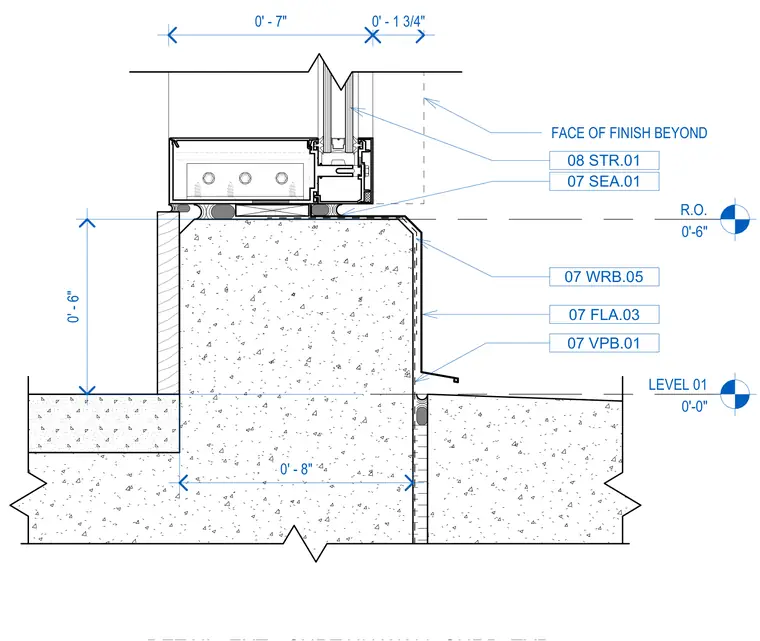

An aluminum curtain wall frame bears on a concrete curb with a continuous sealant joint, weather-resistive barrier, and vapor permeable membrane. Flashing extends over the curb and down the interior face, integrated with structural attachments and sealant beads. Dimensions indicate a six-inch rise from Level 01 to the rough opening.
R.O. 0'-6" LEVEL 01 0'-0" 0' - 6" 0' - 8" 07 FLA.03 07 SEA.01 08 STR.01 07 WRB.05 07 VPB.01 FACE OF FINISH BEYOND 0' - 7" 0' - 1 3/4"
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
