A stainless steel Schluter Vinpro-U transition anchor is anchored directly to a concrete slab with a scheduled top coating finish. The transition profile abuts carpet tile or a walkoff mat, which is specified per the finish plan. The anchor is sealed to the concrete substrate to provide water resistance at the flooring junction.

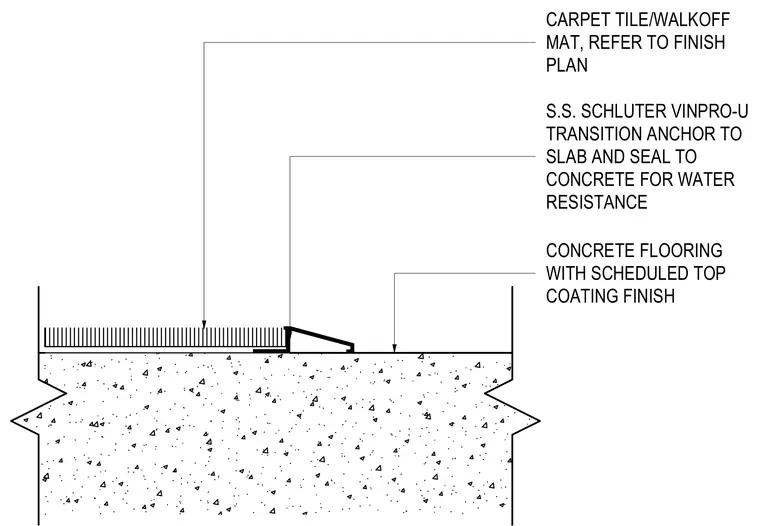

CONCRETE FLOORING WITH SCHEDULED TOP COATING FINISH CARPET TILE/WALKOFF MAT, REFER TO FINISH PLAN S.S. SCHLUTER VINPRO-U TRANSITION ANCHOR TO SLAB AND SEAL TO CONCRETE FOR WATER RESISTANCE
