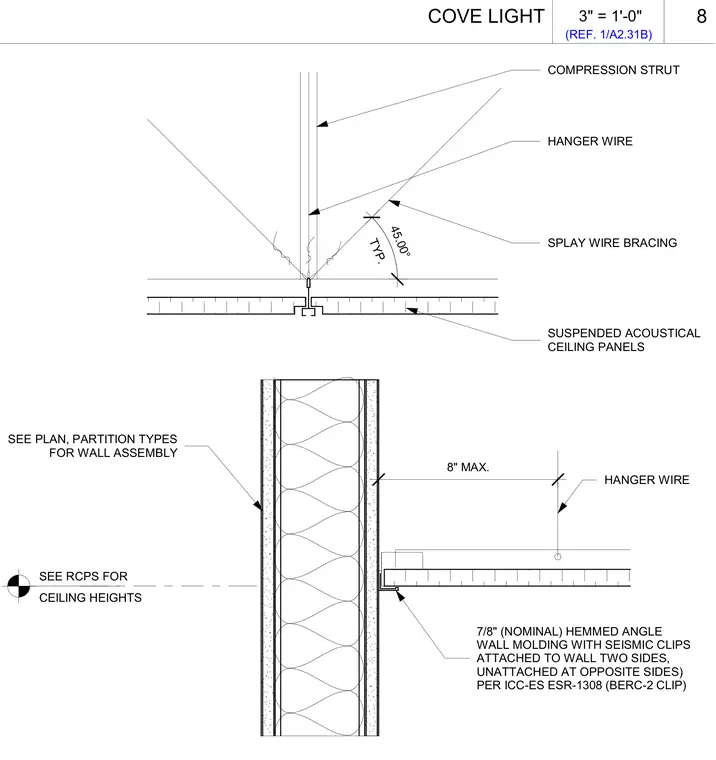

Suspended acoustical ceiling panels are supported by hanger wires and a compression strut, with splay wire bracing at a forty-five degree angle for seismic restraint. A seven-eighth inch nominal hemmed angle wall molding with seismic clips attaches to the partition wall on two sides and remains unattached on the opposite sides per ICC-ES ESR-1308 BERC-2 clips. Hanger wires are spaced at a maximum of eight inches from the wall.
COMPRESSION STRUT HANGER WIRE SPLAY WIRE BRACING SUSPENDED ACOUSTICAL CEILING PANELS SEE PLAN, PARTITION TYPES FOR WALL ASSEMBLY 7/8" (NOMINAL) HEMMED ANGLE WALL MOLDING WITH SEISMIC CLIPS ATTACHED TO WALL TWO SIDES, UNATTACHED AT OPPOSITE SIDES) PER ICC-ES ESR-1308 (BERC-2 CLIP) HANGER WIRE 8" MAX. SEE RCPS FOR CEILING HEIGHTS TYP. 45.00° 3" = 1'-0" (REF. 1/A2.31B) 8 COVE LIGHT
