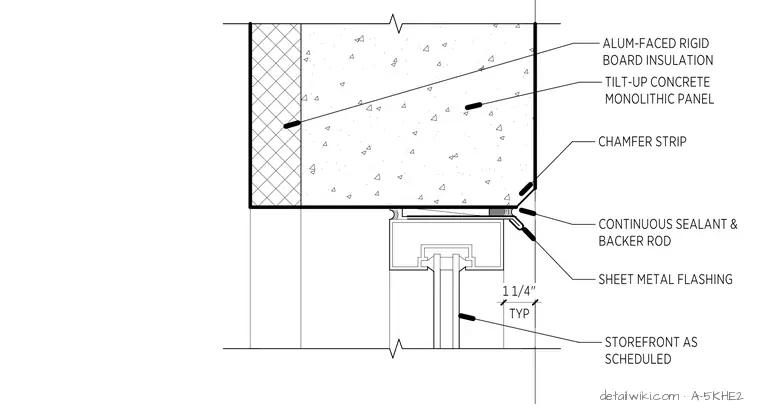

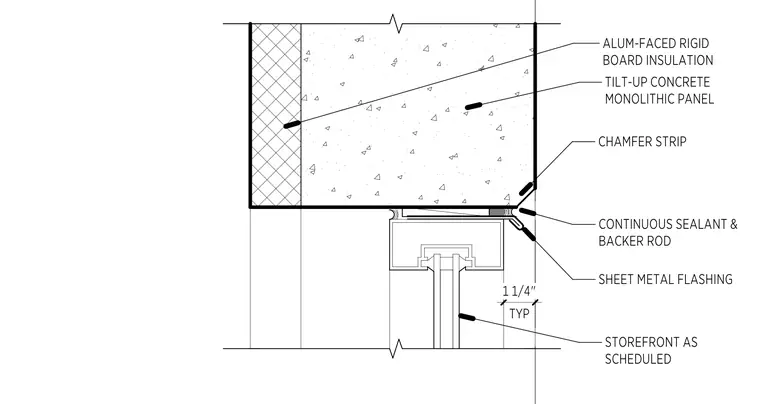

The storefront head sits beneath a tilt-up concrete monolithic panel backed by aluminum-faced rigid board insulation. Sheet metal flashing at the interface between the concrete panel and the storefront frame is secured with a continuous sealant and backer rod. A chamfer strip sits at the exterior corner of the concrete panel. The storefront frame maintains a 1 1/4 inch clearance from the panel face.
