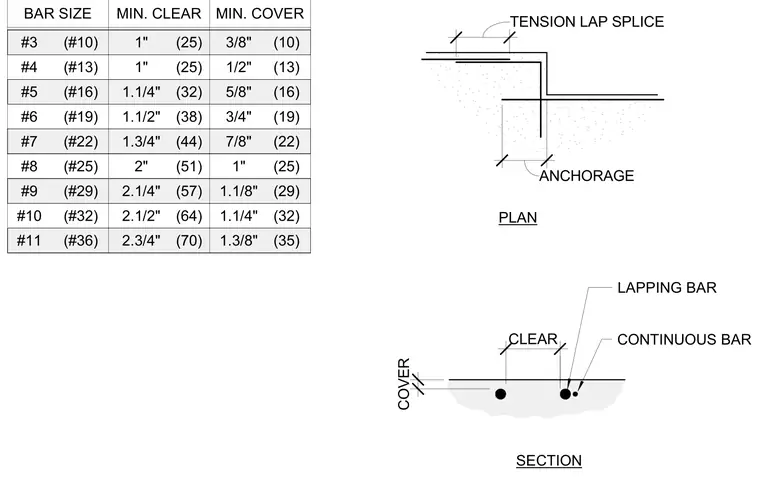

Concrete reinforcement bar sizes range from number three to number eleven, along with their corresponding metric designations, minimum clear spacing requirements, and minimum concrete cover dimensions. The plan view shows a tension lap splice and anchorage condition at a concrete corner or termination. The section view details the clear spacing and concrete cover between a continuous reinforcing bar and a lapping reinforcing bar embedded within concrete.
3/8" 1/2" 5/8" 3/4" 7/8" 1" 1.1/8" 1.1/4" 1.3/8" 2.3/4" 2.1/2" 2.1/4" 2" 1.3/4" 1.1/2" 1.1/4" 1" 1" #3 #4 #5 #6 #7 #8 #9 #10 #11 BAR SIZE MIN. CLEAR MIN. COVER (#10) (#13) (#16) (#19) (#22) (#25) (#29) (#32) (#36) (70) (64) (57) (51) (44) (38) (32) (25) (25) (10) (13) (16) (19) (22) (25) (29) (32) (35) SECTION PLAN CONTINUOUS BAR LAPPING BAR CLEAR COVER ANCHORAGE TENSION LAP SPLICE
