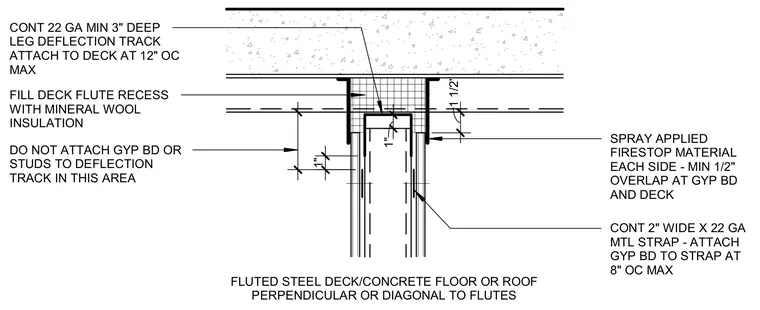

A continuous twenty-two gauge minimum three-inch deep leg deflection track is fastened to the concrete-filled fluted steel floor or roof deck at twelve inches on center maximum, oriented perpendicular or diagonal to the flutes. The deck flute recesses are filled with mineral wool insulation. A gypsum board partition terminates below the deflection track, featuring a continuous two-inch wide by twenty-two gauge metal strap attached to the gypsum board at eight inches on center maximum. Gypsum board and studs remain unattached to the deflection track in this clearance zone. Spray-applied firestop material is applied to each side, overlapping the gypsum board and deck by a minimum of one-half inch.
1" 1" 4 47/256" 1 1/2" SPRAY APPLIED FIRESTOP MATERIAL EACH SIDE - MIN 1/2" OVERLAP AT GYP BD AND DECK CONT 2" WIDE X 22 GA MTL STRAP - ATTACH GYP BD TO STRAP AT 8" OC MAX DO NOT ATTACH GYP BD OR STUDS TO DEFLECTION TRACK IN THIS AREA CONT 22 GA MIN 3" DEEP LEG DEFLECTION TRACK ATTACH TO DECK AT 12" OC MAX FILL DECK FLUTE RECESS WITH MINERAL WOOL INSULATION FLUTED STEEL DECK/CONCRETE FLOOR OR ROOF PERPENDICULAR OR DIAGONAL TO FLUTES
