Rubber laminated dock bumpers measuring ten inches wide by twenty-four inches high by four and one-half inches thick minimum are mounted with steel mounting flanges and expansion bolts per manufacturer specifications, utilizing two bumpers per door. A continuous three-inch by three-inch by one-quarter-inch steel angle with number four dowels two feet zero inches long at twenty-four inches on center each leg and six inches from each end reinforces the opening. Vinyl astragals are provided at the door jambs for weather sealing.

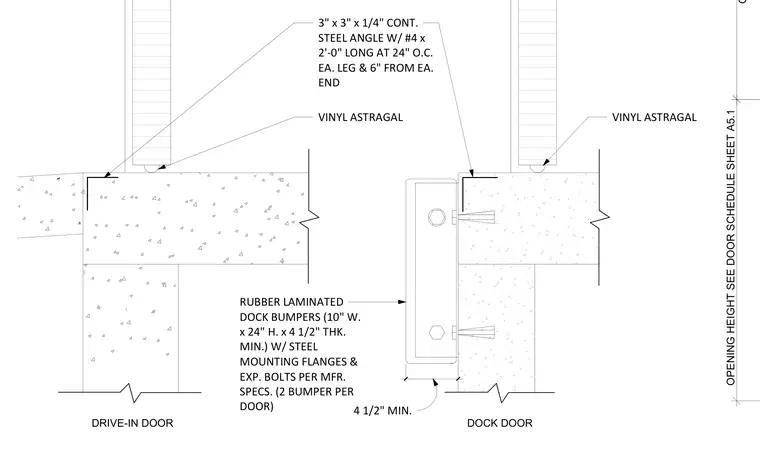

OPENING HEIGHT +12" MIN. OPENING HEIGHT SEE DOOR SCHEDULE SHEET A5.1 VINYL ASTRAGAL DRIVE-IN DOOR DOCK DOOR 3" x 3" x 1/4" CONT. STEEL ANGLE W/ #4 x 2'-0" LONG AT 24" O.C. EA. LEG & 6" FROM EA. END RUBBER LAMINATED DOCK BUMPERS (10" W. x 24" H. x 4 1/2" THK. MIN.) W/ STEEL MOUNTING FLANGES & EXP. BOLTS PER MFR. SPECS. (2 BUMPER PER DOOR) 4 1/2" MIN. VINYL ASTRAGAL
