Solid surfacing countertops are supported over a structural assembly comprising steel framing and supports, fire-retardant-treated plywood sub-layers, and wood preservative treated wood shims. The countertop features a three-quarter inch solid surfacing layer over a three-quarter inch wood substrate, with a total edge profile depth of four inches. Steel framing members provide the primary under-counter support.

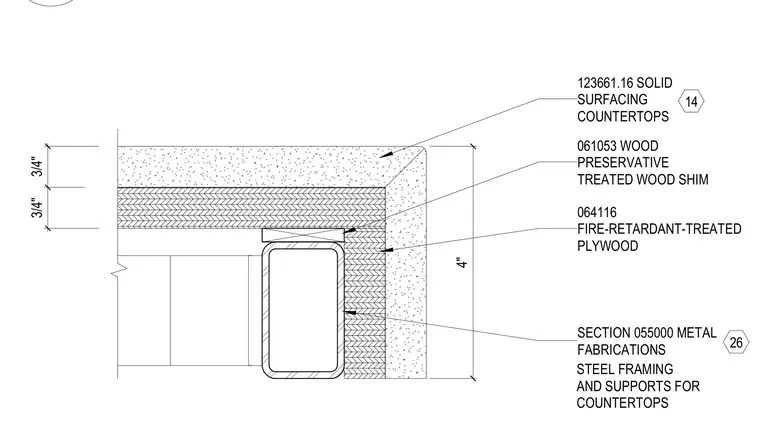

STEEL FRAMING AND SUPPORTS FOR COUNTERTOPS SECTION 055000 METAL FABRICATIONS 123661.16 SOLID SURFACING COUNTERTOPS 14 3/4" 3/4" 4" 061053 WOOD PRESERVATIVE TREATED WOOD SHIM 064116 FIRE-RETARDANT-TREATED PLYWOOD 26
