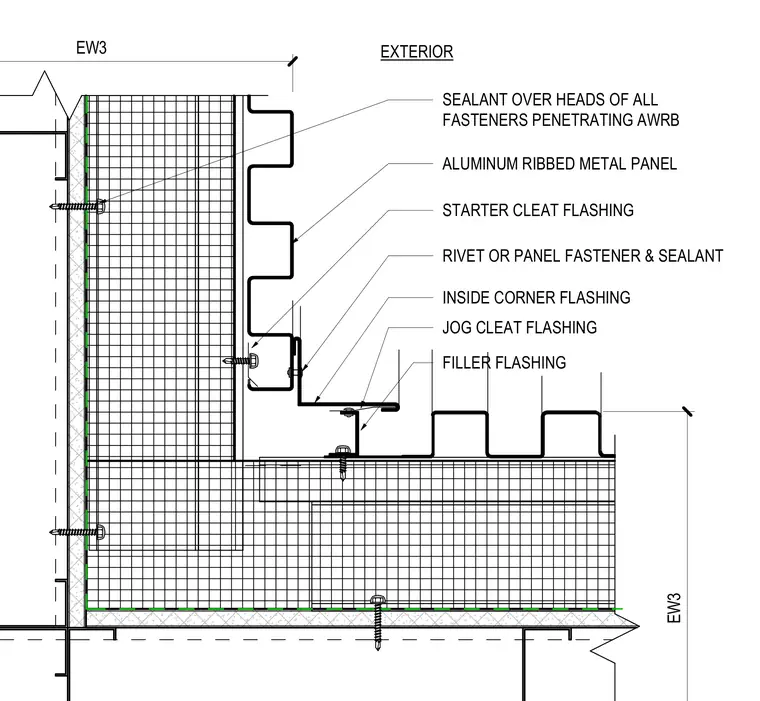

An exterior corner assembly of aluminum ribbed metal panels incorporating starter cleat flashing and inside corner flashing secured with rivets or panel fasteners. Filler flashing and jog cleat flashing integrate with the panel profile, while sealant is applied over the heads of all fasteners penetrating the air-water-resistive barrier.
SEALANT OVER HEADS OF ALL FASTENERS PENETRATING AWRB EW3 ALUMINUM RIBBED METAL PANEL STARTER CLEAT FLASHING EXTERIOR RIVET OR PANEL FASTENER & SEALANT INSIDE CORNER FLASHING JOG CLEAT FLASHING FILLER FLASHING EW3
