A typical 12-gauge hanger wire with no bends anchors the ceiling system to the overhead structure. The wire connects with three turns within three inches at the ends. A manufacturer-listed track or alternate cover pairs with manufactured listed channel moldings. A heavy-duty T-bar system supports the ceiling grid assembly.

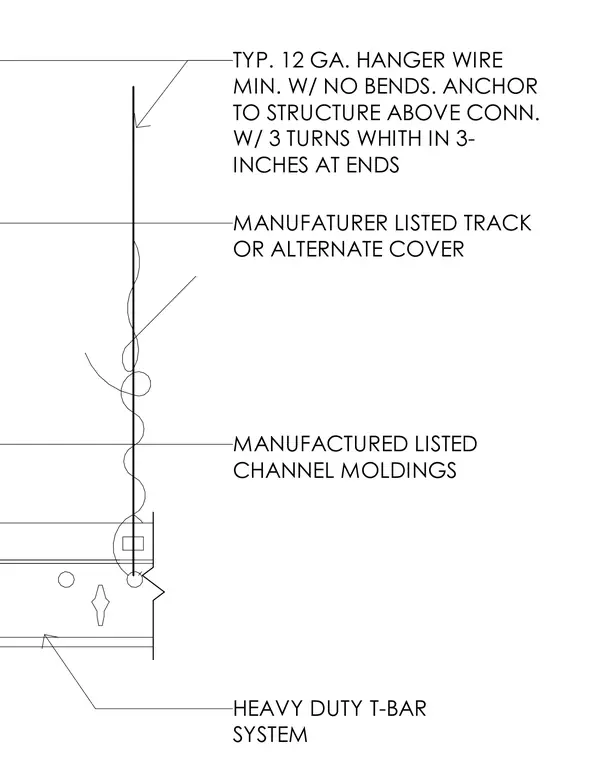

TYP. 12 GA. HANGER WIRE MIN. W/ NO BENDS. ANCHOR TO STRUCTURE ABOVE CONN. W/ 3 TURNS WHITH IN 3- INCHES AT ENDS MANUFATURER LISTED TRACK OR ALTERNATE COVER HEAVY DUTY T-BAR SYSTEM MANUFACTURED LISTED CHANNEL MOLDINGS
