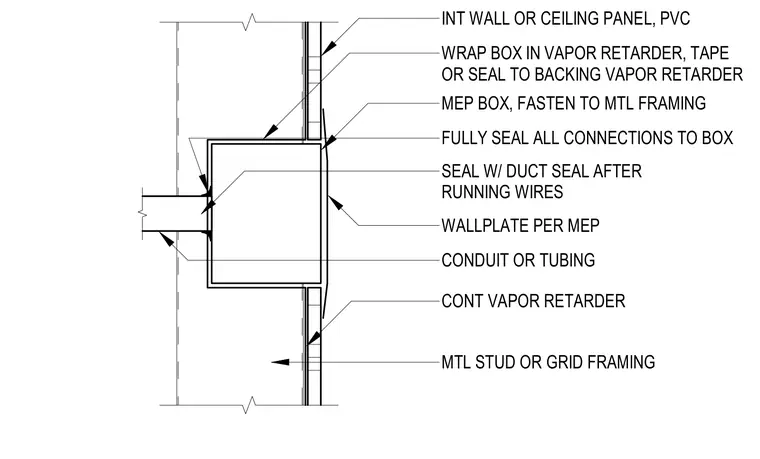

A PVC mechanical, electrical, and plumbing box is fastened to metal framing behind an interior wall or ceiling panel. A continuous vapor retarder wraps the box and is taped or sealed to the backing vapor retarder layer. All box connections are fully sealed, and conduit or tubing penetrations are sealed with duct seal after running wires. A wallplate finishes the assembly on the room side.
INT WALL OR CEILING PANEL, PVC MEP BOX, FASTEN TO MTL FRAMING WALLPLATE PER MEP CONT VAPOR RETARDER MTL STUD OR GRID FRAMING FULLY SEAL ALL CONNECTIONS TO BOX CONDUIT OR TUBING WRAP BOX IN VAPOR RETARDER, TAPE OR SEAL TO BACKING VAPOR RETARDER SEAL W/ DUCT SEAL AFTER RUNNING WIRES
