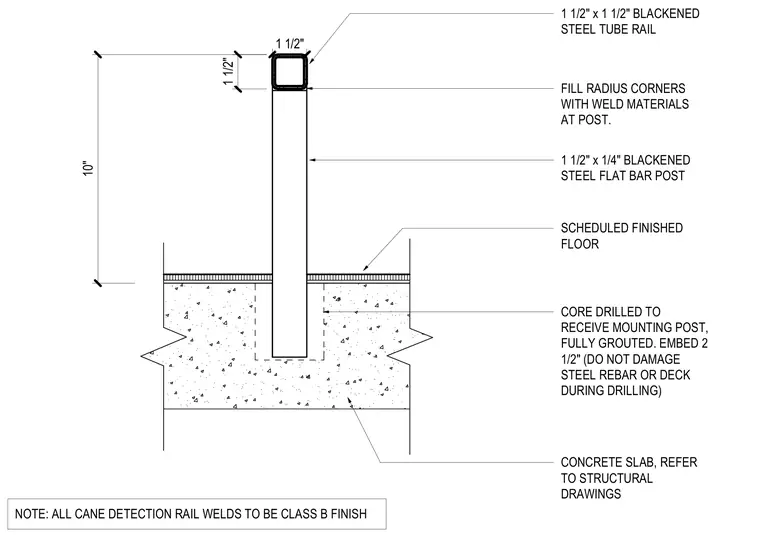

A one-and-one-half by one-and-one-half inch blackened steel tube rail sits atop a one-and-one-half by one-quarter inch blackened steel flat bar post. The post inserts into a core-drilled hole in the concrete slab, which is fully grouted and embeds two-and-one-half inches deep while avoiding damage to steel reinforcement or decking. Radius corners at the post are filled with weld material, and all welds finish to a class B standard.
10" 1 1/2" x 1 1/2" BLACKENED STEEL TUBE RAIL 1 1/2" x 1/4" BLACKENED STEEL FLAT BAR POST SCHEDULED FINISHED FLOOR CORE DRILLED TO RECEIVE MOUNTING POST, FULLY GROUTED. EMBED 2 1/2" (DO NOT DAMAGE STEEL REBAR OR DECK DURING DRILLING) CONCRETE SLAB, REFER TO STRUCTURAL DRAWINGS 1 1/2" 1 1/2" FILL RADIUS CORNERS WITH WELD MATERIALS AT POST. NOTE: ALL CANE DETECTION RAIL WELDS TO BE CLASS B FINISH
