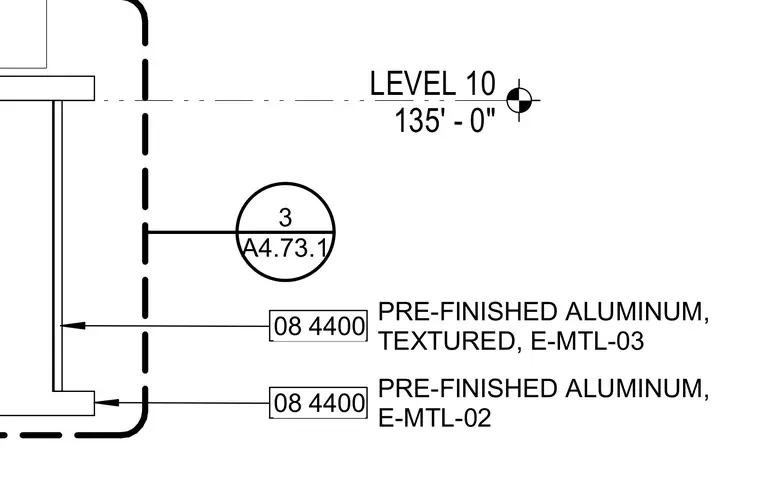

Pre-finished aluminum panels are installed at Level 10 of the building exterior. The assembly incorporates standard pre-finished aluminum panels designated as E-MTL-02 alongside textured pre-finished aluminum panels designated as E-MTL-03. The elevation datum is set at Level 10 at 135 feet and 0 inches. The detail references drawing sheet A4.73.1.
LEVEL 10 135' - 0" A4.73.1 3 08 4400 PRE-FINISHED ALUMINUM, E-MTL-02 08 4400 PRE-FINISHED ALUMINUM, TEXTURED, E-MTL-03
