Six-inch insulated metal panels attach to the steel structure with insulated metal panel fasteners and a three-by-three-inch twelve-gauge galvanized angle with concrete fasteners spaced at twenty-four inches on center. The concrete floor slab bears on steel framing, with cementitious firespray applied to the underside of the deck and structural support. The joint between the floor edge and the insulated metal panel wall contains packed mineral wool and continuous firestop sealant. Firestop is required at any joint between the floor and the insulated metal panel wall or curtain wall.

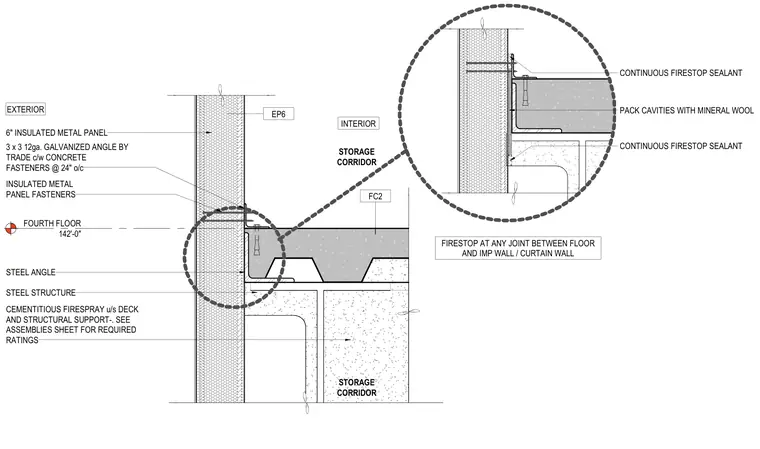

FOURTH FLOOR 142'-0" STORAGE CORRIDOR STORAGE CORRIDOR 6" INSULATED METAL PANEL STEEL STRUCTURE STEEL ANGLE INSULATED METAL PANEL FASTENERS 3 x 3 12ga. GALVANIZED ANGLE BY TRADE c/w CONCRETE FASTENERS @ 24" o/c INTERIOR EXTERIOR CEMENTITIOUS FIRESPRAY u/s DECK AND STRUCTURAL SUPPORT-. SEE ASSEMBLIES SHEET FOR REQUIRED RATINGS EP6 FC2 CONTINUOUS FIRESTOP SEALANT PACK CAVITIES WITH MINERAL WOOL CONTINUOUS FIRESTOP SEALANT FIRESTOP AT ANY JOINT BETWEEN FLOOR AND IMP WALL / CURTAIN WALL
