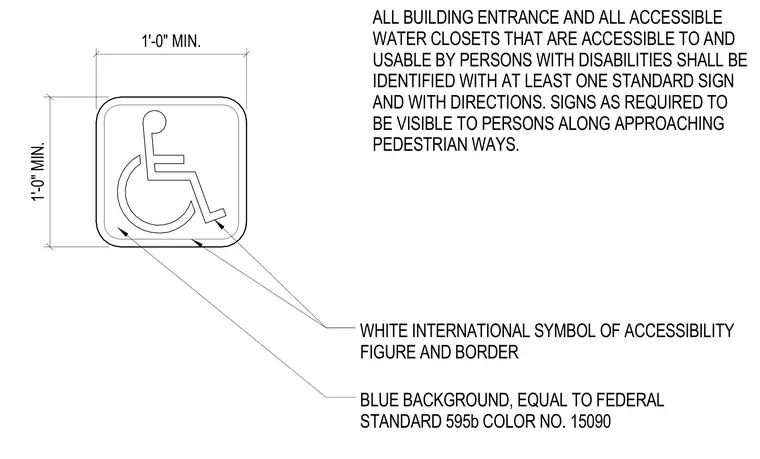

An accessible sign features a white International Symbol of Accessibility figure and border set against a blue background conforming to Federal Standard 595b color number 15090. The sign dimensions measure a minimum of one foot by one foot. Directional signage must be provided along approaching pedestrian ways to ensure visibility for all building entrances and accessible water closets.
1'-0" MIN. 1'-0" MIN. WHITE INTERNATIONAL SYMBOL OF ACCESSIBILITY FIGURE AND BORDER ALL BUILDING ENTRANCE AND ALL ACCESSIBLE WATER CLOSETS THAT ARE ACCESSIBLE TO AND USABLE BY PERSONS WITH DISABILITIES SHALL BE IDENTIFIED WITH AT LEAST ONE STANDARD SIGN AND WITH DIRECTIONS. SIGNS AS REQUIRED TO BE VISIBLE TO PERSONS ALONG APPROACHING PEDESTRIAN WAYS. BLUE BACKGROUND, EQUAL TO FEDERAL STANDARD 595b COLOR NO. 15090
