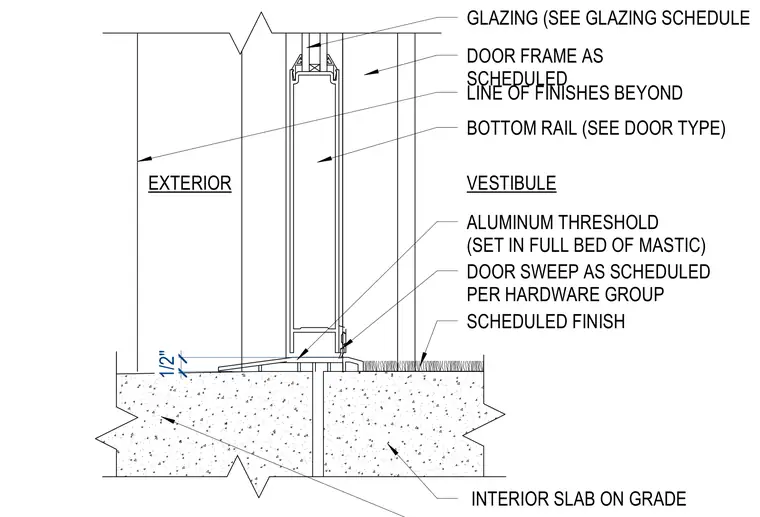

An exterior vestibule aluminum threshold is set in a full bed of mastic over an interior slab on grade. The door bottom rail receives a sweep as scheduled per the hardware group. Glazing is installed within the door frame as scheduled, with interior finishes extending beyond.
EXTERIOR VESTIBULE DOOR SWEEP AS SCHEDULED PER HARDWARE GROUP BOTTOM RAIL (SEE DOOR TYPE) ALUMINUM THRESHOLD (SET IN FULL BED OF MASTIC) GLAZING (SEE GLAZING SCHEDULE DOOR FRAME AS SCHEDULED LINE OF FINISHES BEYOND INTERIOR SLAB ON GRADE 1/2" SCHEDULED FINISH
