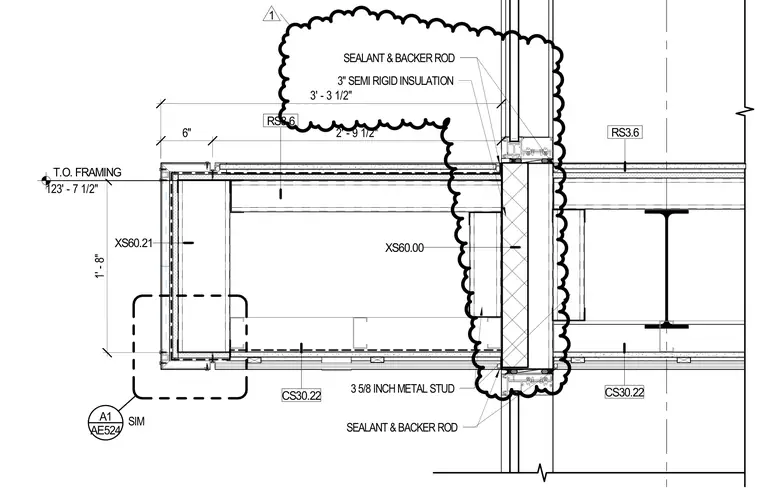

An exterior wall and framing junction at an entrance door opening incorporates 3-5/8 inch metal studs backed by 3 inches of semi-rigid insulation. Perimeter joints are sealed with sealant and backer rod. Elevation and framing dimensions locate the top of framing at 123'-7-1/2".
6" 2' - 9 1/2" RS3.6 CS30.22 XS60.21 RS3.6 1' - 8" CS30.22 SEALANT & BACKER ROD SEALANT & BACKER ROD AE524 A1 SIM XS60.00 3 5/8 INCH METAL STUD 3" SEMI RIGID INSULATION 3' - 3 1/2" 1 T.O. FRAMING 123' - 7 1/2"
