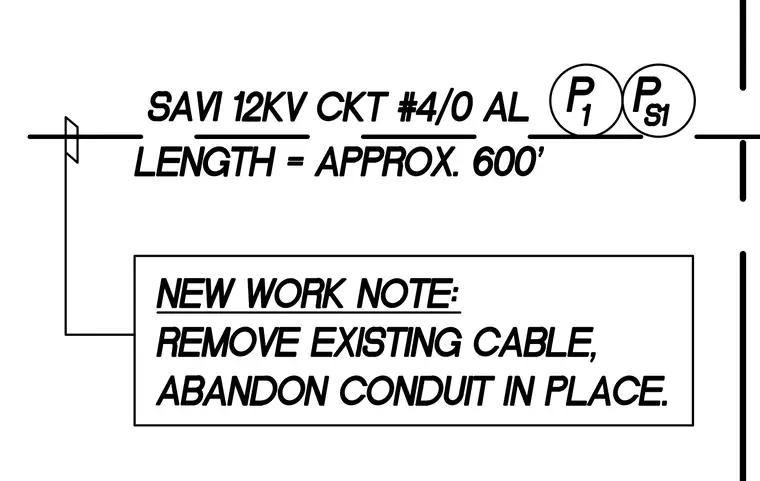

An electrical circuit run consisting of a 12 kilovolt aluminum conductor with an approximate length of 600 feet is designated with panel tags P1 and PS1. A new work note specifies to remove the existing cable and abandon the existing conduit in place.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
