Architectural · A-5GD9G

Curtain Wall Interface at Floor Slab and Steel Beam

Materials

Steel Glass / Glazing Aluminum Metal (misc.)Gypsum / Drywall

Elements

Columns Walls Curtain Walls Facades / Cladding Ceilings Floors / Slabs

About this detail

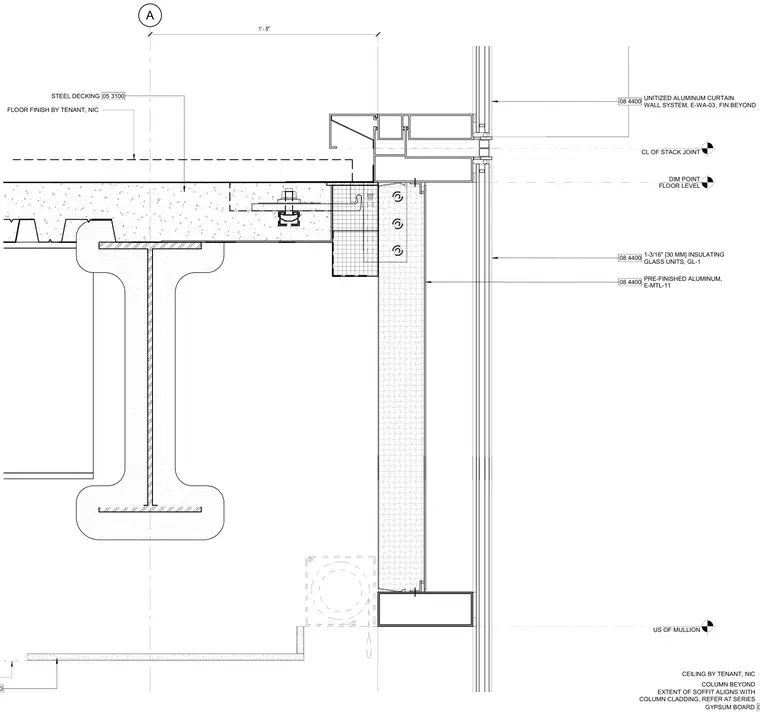

A unitized aluminum curtain wall system with 1-3/16-inch insulating glass units interfaces with a concrete-filled steel decking floor assembly over a wide-flange steel beam. The curtain wall mullion aligns with the floor level dimension point and center line of stack joint. Pre-finished aluminum paneling extends below the vision glass. A gypsum board ceiling by tenant is positioned below, with the soffit extent aligning with the column cladding as referenced in the A7 series.
