Text on the drawing

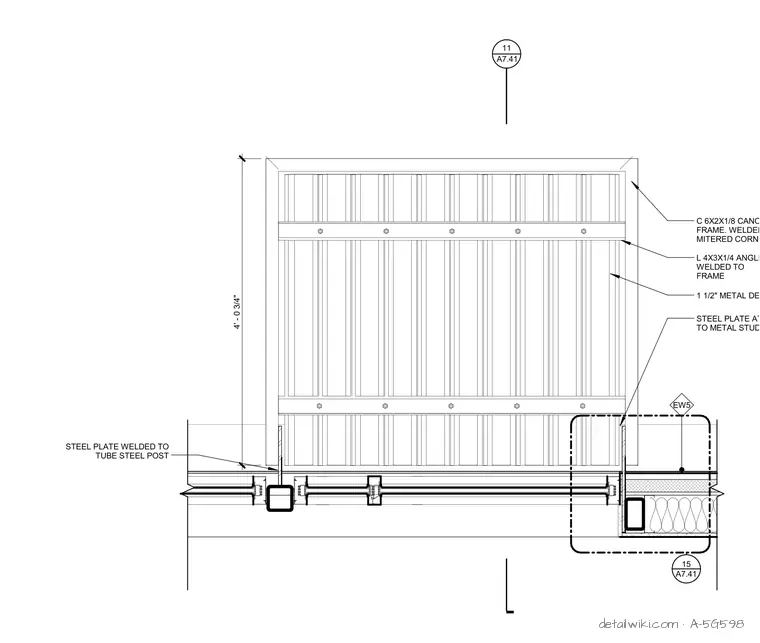

11 A7.41 C 6X2X1/8 CANOPY FRAME. WELDED AND MITERED CORNERS L 4X3X1/4 ANGLE WELDED TO FRAME STEEL PLATE ATTACHED TO METAL STUD WALL 1 1/2" METAL DECKING STEEL PLATE WELDED TO TUBE STEEL POST EW5 4' - 0 3/4" A7.41 15
