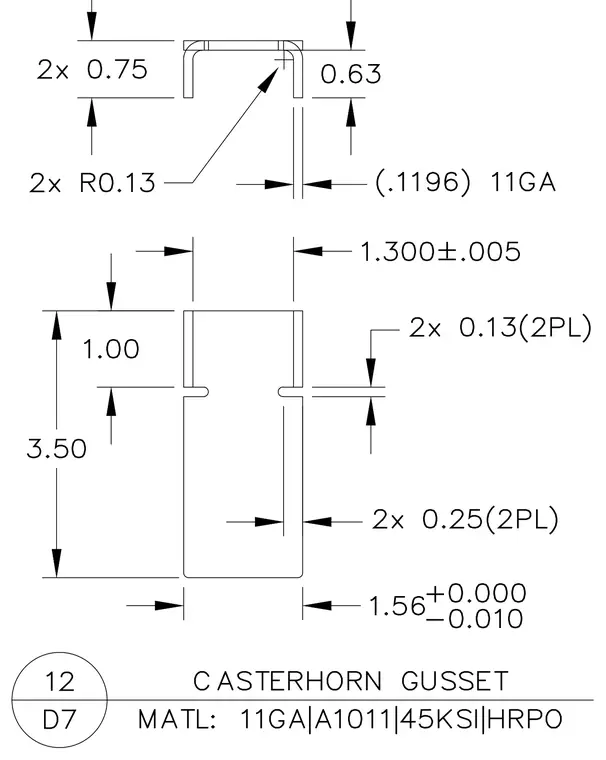

The connection assembly consists of an eleven-gauge steel gusset plate fabricated from ASTM A1011 forty-five KSI hot-rolled pickled and oiled material. The part has a total length of three and one-half inches and incorporates two point-twenty-five-inch dimensions, two point-thirteen-inch corner cuts with two radius-point-thirteen fillets, and a main body width of one and fifty-six-hundredths inches with minus-zero-point-zero-ten tolerance. Formed bends feature a zero-point-sixty-three-inch leg length and a zero-point-seventy-five-inch spacing with two radius-point-thirteen inner bends.
(.1196) 11GA 0.63 1.00 2x 0.25(2PL) 2x 0.13(2PL) 1.56+0.000 -0.010 1.300±.005 2x R0.13 2x 0.75 3.50 CASTERHORN GUSSET 12 D7 MATL: 11GA|A1011|45KSI|HRPO T I
