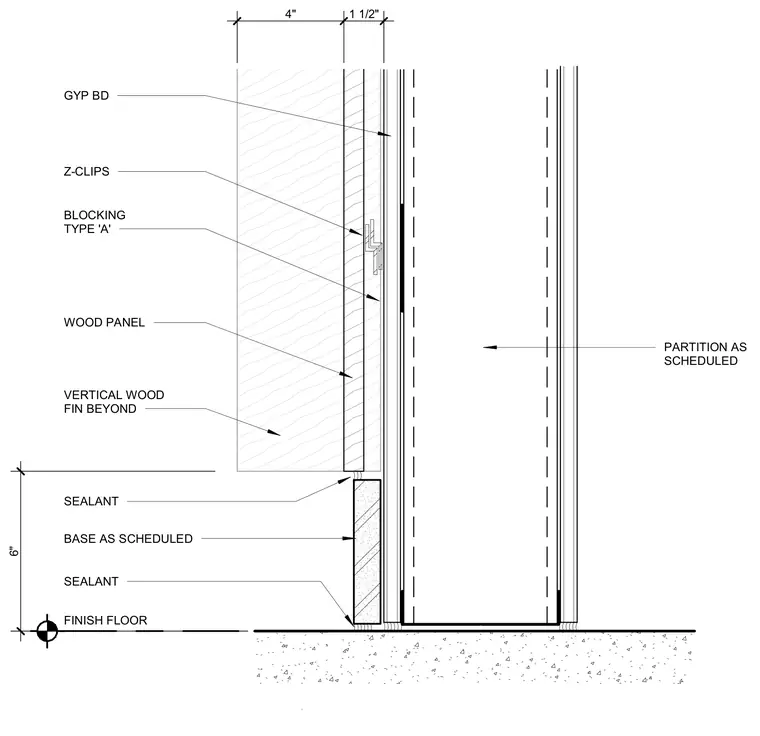

This interior partition detail shows a wood panel finish mounted to type A wood blocking and gypsum board using Z-clips. The vertical wood panels extend downward over a designated base material separated by joints filled with sealant. The entire assembly ties into the finish floor line with vertical wood fins visible beyond the primary wall section.
FINISH FLOOR VERTICAL WOOD FIN BEYOND PARTITION AS SCHEDULED SEALANT BASE AS SCHEDULED SEALANT 6" 4" 1 1/2" Z-CLIPS BLOCKING TYPE 'A' WOOD PANEL GYP BD
