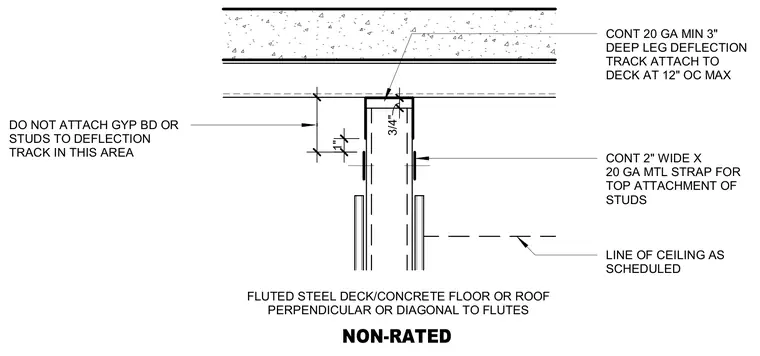

This non-rated wall assembly frames to a one-inch fluted steel deck with a concrete floor or roof running perpendicular or diagonal to the flutes. A continuous twenty-gauge minimum three-inch deep leg deflection track attaches directly to the deck at a maximum of twelve inches on center. Gypsum board and studs remain unattached within the top deflection zone to allow structural movement. A continuous two-inch wide by twenty-gauge metal strap provides lateral top attachment for the studs. The ceiling line is positioned as scheduled.
1" NON-RATED FLUTED STEEL DECK/CONCRETE FLOOR OR ROOF PERPENDICULAR OR DIAGONAL TO FLUTES LINE OF CEILING AS SCHEDULED CONT 2" WIDE X 20 GA MTL STRAP FOR TOP ATTACHMENT OF STUDS CONT 20 GA MIN 3" DEEP LEG DEFLECTION TRACK ATTACH TO DECK AT 12" OC MAX DO NOT ATTACH GYP BD OR STUDS TO DEFLECTION TRACK IN THIS AREA 3/4" -
