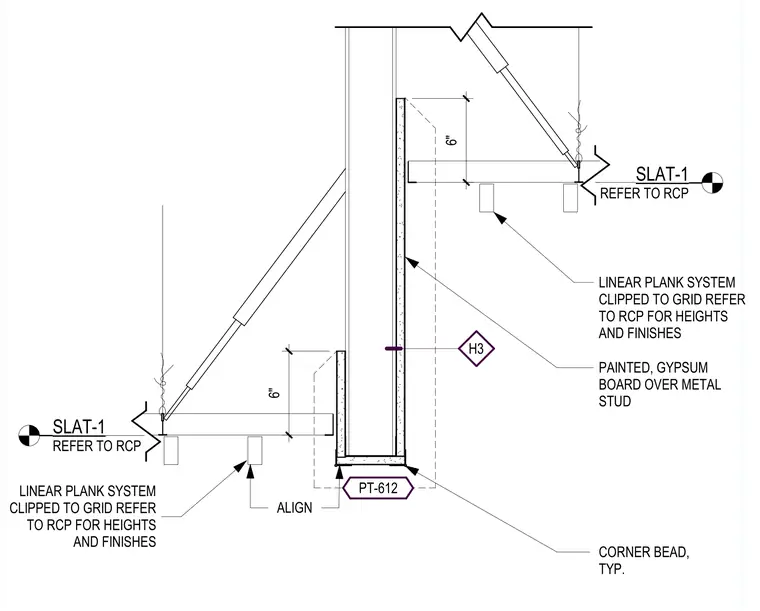

This assembly features a linear plank ceiling system clipped to a suspension grid, terminating at a painted gypsum board partition wall constructed over metal studs. The ceiling planks are positioned with a six-inch vertical offset between the two ceiling levels shown. The partition wall is finished with a corner bead at the base intersection with the lower ceiling level. The linear plank system is referenced to the reflected ceiling plan for specific heights and finish requirements.
