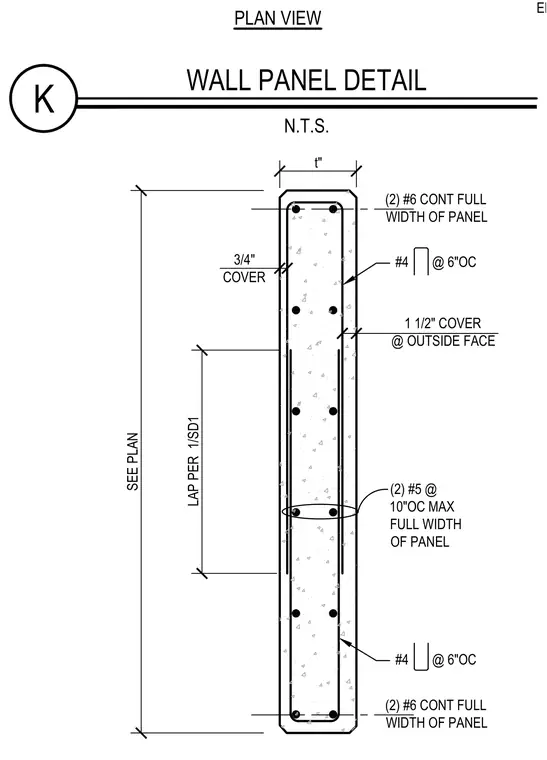

A reinforced concrete wall panel section shows internal steel reinforcing bars and concrete cover dimensions in plan view. Two continuous number six bars run the full width of the panel at each outer face. Number four ties space at six inches on center along the profile. Additional number five bars at ten inches on center maximum run full width with laps per structural drawing one slash SD one. Concrete cover measures three-quarters of an inch at the face and one and a half inches at the outside face, with overall thickness sized per plan.
SEE PLAN t" 3/4" COVER 1 1/2" COVER @ OUTSIDE FACE #4 @ 6"OC #4 @ 6"OC (2) #6 CONT FULL WIDTH OF PANEL (2) #5 @ 10"OC MAX FULL WIDTH OF PANEL (2) #6 CONT FULL WIDTH OF PANEL LAP PER 1/SD1 K WALL PANEL DETAIL N.T.S. ELEV PLAN VIEW
