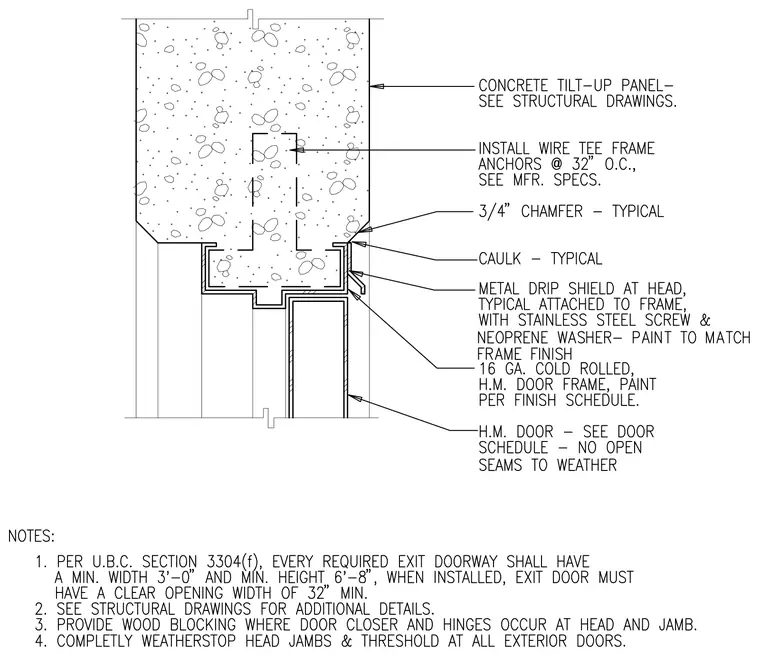

A concrete tilt-up wall panel bears over a hollow metal door frame head, featuring wire tee frame anchors spaced at thirty-two inches on center. A three-quarter-inch chamfer is provided at the exterior concrete corner with a typical sealant joint. A sixteen-gauge cold-rolled hollow metal door frame receives a metal drip shield attached with stainless steel screws and neoprene washers. A hollow metal door sits below, with open seams kept away from weather exposure.
