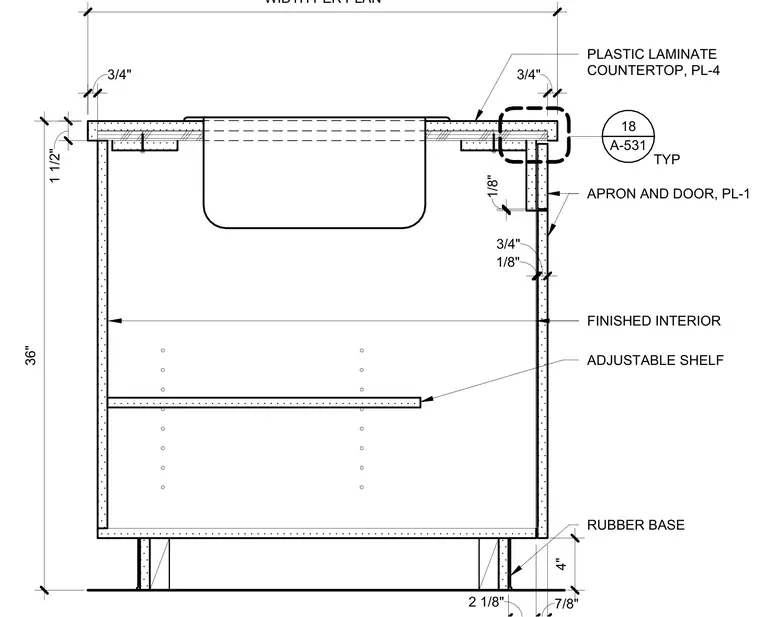

This interior millwork elevation details a sink base cabinet with plastic laminate countertop designated as PL-4, set at a standard height of 36 inches with a width per plan. The casework features aprons and doors finished in plastic laminate PL-1, supported by a 4-inch rubber base at the floor. The interior includes a finished lining and an adjustable shelf supported by standard shelf pins. Clearances and material thicknesses are explicitly dimensioned at 3/4-inch and 1 1/2-inch intervals.
WIDTH PER PLAN A-531 18 TYP APRON AND DOOR, PL-1 PLASTIC LAMINATE COUNTERTOP, PL-4 3/4" 3/4" FINISHED INTERIOR RUBBER BASE ADJUSTABLE SHELF 36" 1/8" 1/8" 3/4" 2 1/8" 7/8" 4" 1 1/2"
