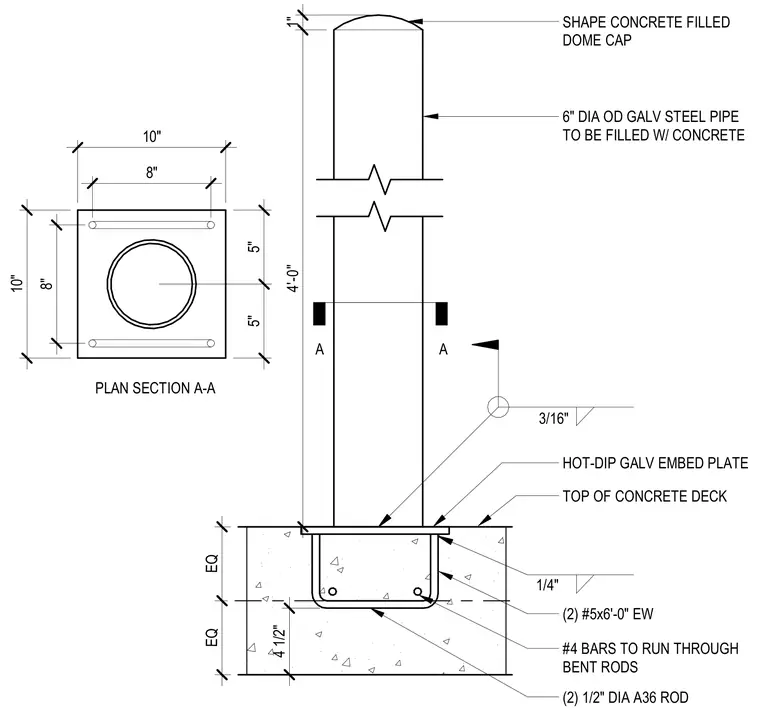

A six-inch outside diameter galvanized steel pipe is filled with concrete and topped with a shaped concrete-filled dome cap. The pipe is welded to a hot-dip galvanized embed plate using a quarter-inch fillet weld at the top and a three-sixteenths fillet weld at the base. The embed plate is anchored into the concrete deck with two half-inch diameter A36 rods and two number five reinforcing bars measuring six feet long each way, supplemented by number four bars running through the bent rods.
6" DIA OD GALV STEEL PIPE TO BE FILLED W/ CONCRETE HOT-DIP GALV EMBED PLATE (2) 1/2" DIA A36 ROD 1/4" (2) #5x6'-0" EW A A PLAN SECTION A-A TOP OF CONCRETE DECK 10" 10" 5" 5" 8" 8" 4'-0" 1" 3/16" EQ EQ 4 1/2" #4 BARS TO RUN THROUGH BENT RODS SHAPE CONCRETE FILLED DOME CAP
