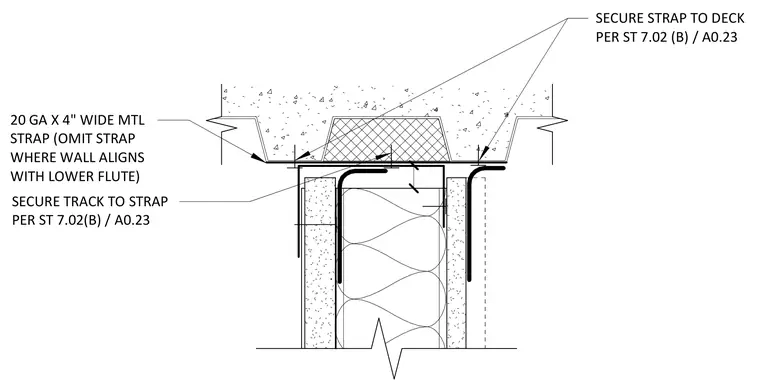

A twenty-gauge by four-inch-wide metal strap spans across the concrete-filled metal deck flutes and secures to the deck per structural specifications. The metal stud track attaches directly to this strap, with the strap omitted where the wall aligns with a lower flute. The wall framing consists of metal studs and track supporting gypsum board finish layers.
20 GA X 4" WIDE MTL STRAP (OMIT STRAP WHERE WALL ALIGNS WITH LOWER FLUTE) SECURE STRAP TO DECK PER ST 7.02 (B) / A0.23 SECURE TRACK TO STRAP PER ST 7.02(B) / A0.23
