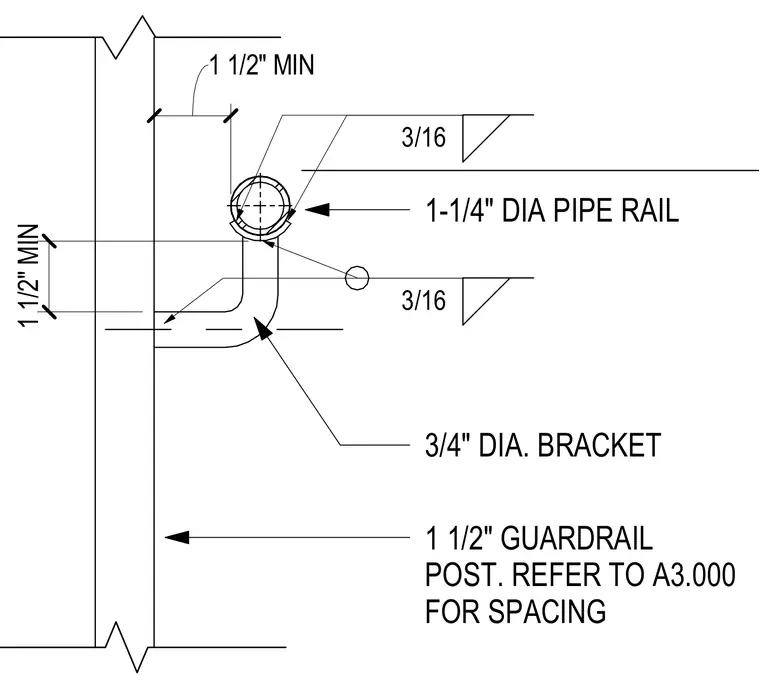

A one-and-one-quarter-inch diameter pipe rail connects to a three-quarter-inch diameter bracket, which is welded to a one-and-a-half-inch guardrail post with three-sixteenths-inch fillet welds. Spacing for the guardrail post is coordinated per sheet A3.000, maintaining a minimum clearance of one and one-half inches.
1-1/4" DIA PIPE RAIL 3/4" DIA. BRACKET 1 1/2" GUARDRAIL POST. REFER TO A3.000 FOR SPACING 1 1/2" MIN 3/16 3/16 1 1/2" MIN
