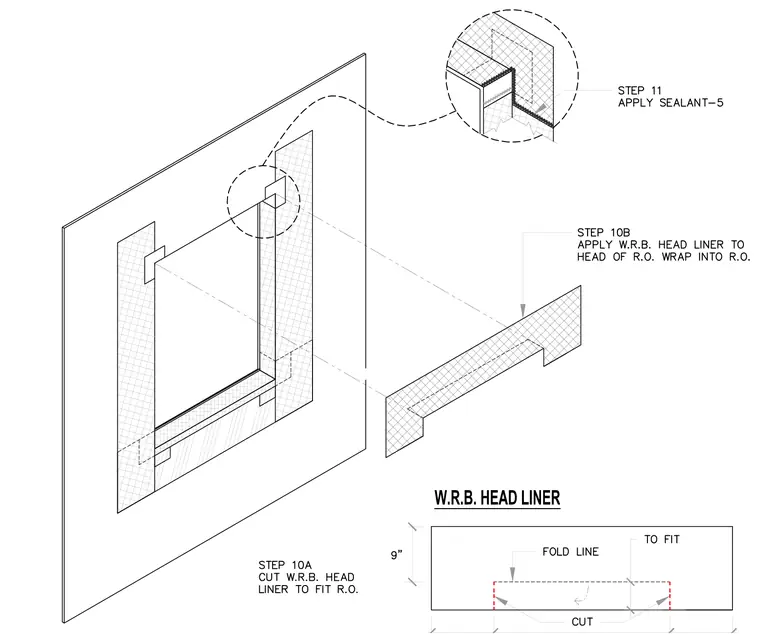

The weather-resistive barrier head liner is cut to fit the rough opening and wrapped into the header. A fold line guides the installation before sealant is applied along the joint. This assembly integrates flashing and membrane at the window head to prevent moisture infiltration.
W.R.B. HEAD LINER
