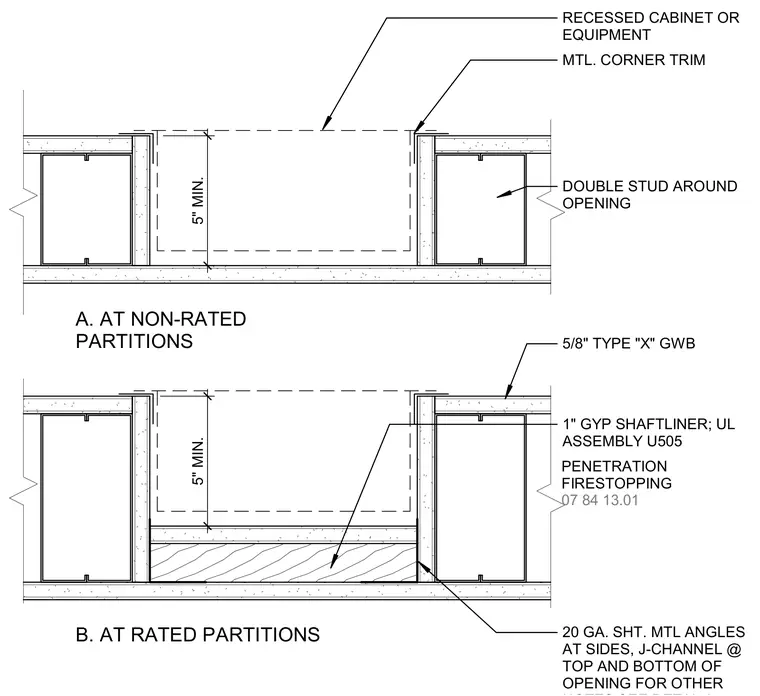

A recessed cabinet or equipment enclosure is integrated into metal stud partitions with metal corner trim at the opening edges. Non-rated partitions utilize double metal studs around the opening with gypsum wallboard surfacing. Rated partitions incorporate five-eighths inch Type X gypsum wallboard, one inch gypsum shaftliner per UL Assembly U505, penetration firestopping, and twenty gauge sheet metal angles at the sides with J-channels at the top and bottom of the opening.
MTL. CORNER TRIM 5" MIN. 5" MIN. RECESSED CABINET OR EQUIPMENT DOUBLE STUD AROUND OPENING B. AT RATED PARTITIONS 5/8" TYPE "X" GWB 1" GYP SHAFTLINER; UL ASSEMBLY U505 20 GA. SHT. MTL ANGLES AT SIDES, J-CHANNEL @ TOP AND BOTTOM OF OPENING FOR OTHER A. AT NON-RATED PARTITIONS 07 84 13.01 PENETRATION FIRESTOPPING
