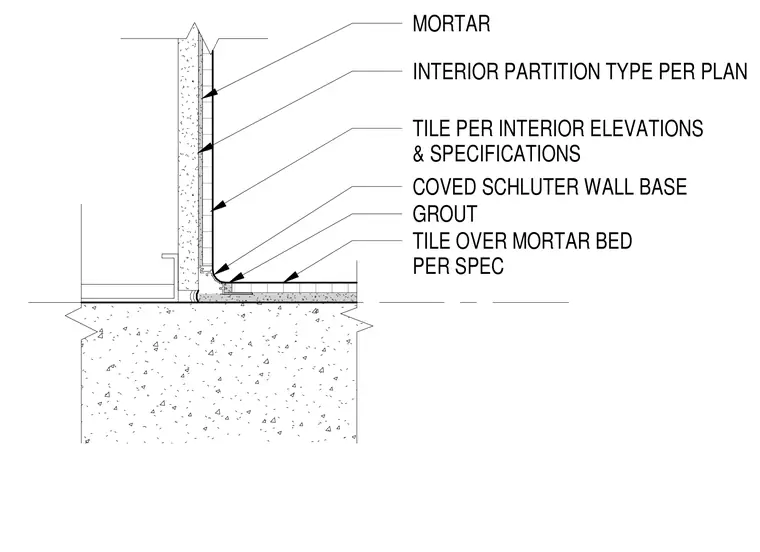

A tile finish is applied over a mortar bed per specifications at the floor meeting an interior partition type per plan. A coved Schluter wall base profile is set at the internal corner with grout and mortar. The wall tile finish is installed per interior elevations and specifications over a mortar layer.
TILE OVER MORTAR BED PER SPEC COVED SCHLUTER WALL BASE TILE PER INTERIOR ELEVATIONS & SPECIFICATIONS INTERIOR PARTITION TYPE PER PLAN GROUT MORTAR
