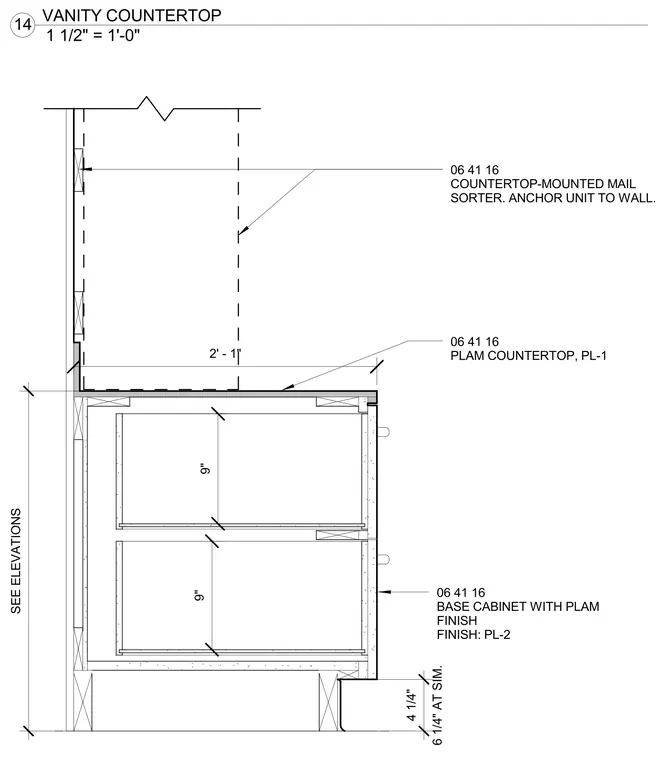

A plastic laminate countertop designated as finish PL-1 sits atop a base cabinet with a plastic laminate finish designated as PL-2. The base cabinet features drawers measuring nine inches each with a toe kick measuring four and one-quarter inches high. A countertop-mounted mail sorter is anchored to the wall above the countertop, spanning two feet and one inch in height.
SEE ELEVATIONS 06 41 16 PLAM COUNTERTOP, PL-1 06 41 16 BASE CABINET WITH PLAM FINISH FINISH: PL-2 6 1/4" AT SIM. 4 1/4" 06 41 16 COUNTERTOP-MOUNTED MAIL SORTER. ANCHOR UNIT TO WALL. 2' - 1" 9" 9" 1 1/2" = 1'-0" 14 VANITY COUNTERTOP
