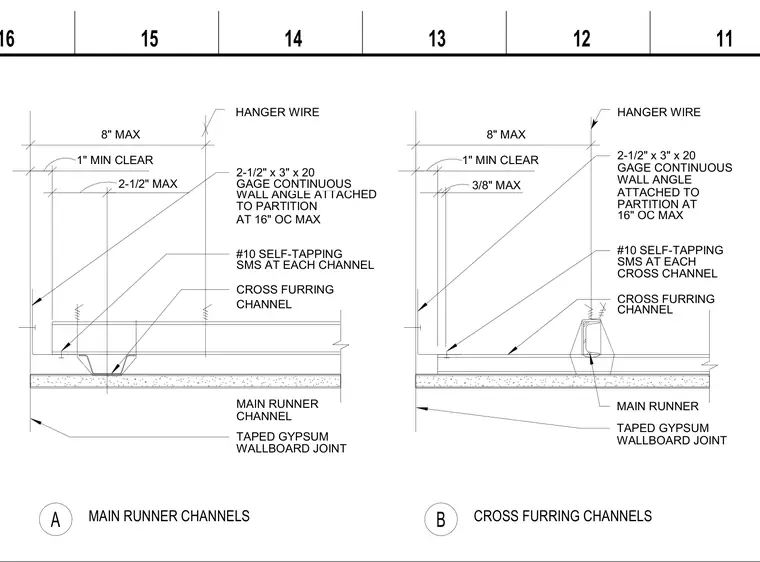

Gypsum ceiling framing is supported by a continuous 2-1/2-inch by 3-inch by 20-gauge wall angle attached to the partition at sixteen inches on center maximum. Hanger wires secure the main runner channels spaced at sixteen inches on center maximum, maintaining a one-inch minimum clearance. Cross furring channels attach perpendicular to the main runners, supporting the taped gypsum wallboard ceiling finish. Self-tapping sheet metal screws fasten each channel connection securely.
B CROSS FURRING CHANNELS A MAIN RUNNER CHANNELS 16" OC MAX ATTACHED TO 2-1/2" x 3" x 20 GAGE CONTINUOUS HANGER WIRE CROSS CHANNEL PARTITION AT SMS AT EACH CROSS FURRING CHANNEL #10 SELF-TAPPING HANGER WIRE 1" MIN CLEAR AT 16" OC MAX TO PARTITION CROSS FURRING #10 SELF-TAPPING SMS AT EACH CHANNEL WALL ANGLE ATTACHED MAIN RUNNER CHANNEL 3/8" MAX 8" MAX 1" MIN CLEAR 8" MAX 2-1/2" MAX TAPED GYPSUM WALLBOARD JOINT CHANNEL WALLBOARD JOINT TAPED GYPSUM MAIN RUNNER 2-1/2" x 3" x 20 GAGE CONTINUOUS WALL ANGLE 11 12 13 14 15 16
