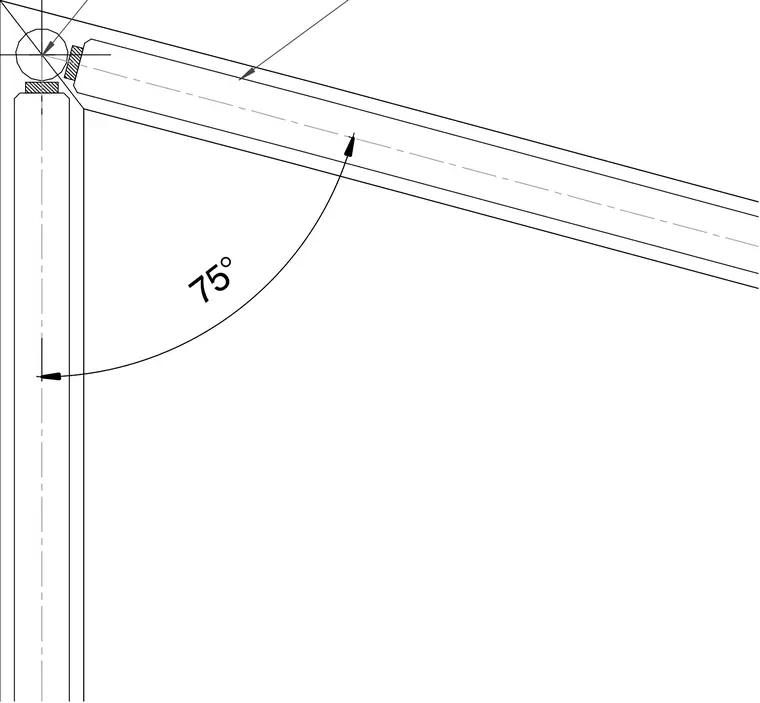

Two glass lites intersect at a 75-degree angle in this glass-to-glass corner assembly. The joint incorporates continuous edge seals between the adjacent glazing panels. A specialized corner mullion or sealant detail bridges the intersection to maintain structural and weather-resistant performance.
