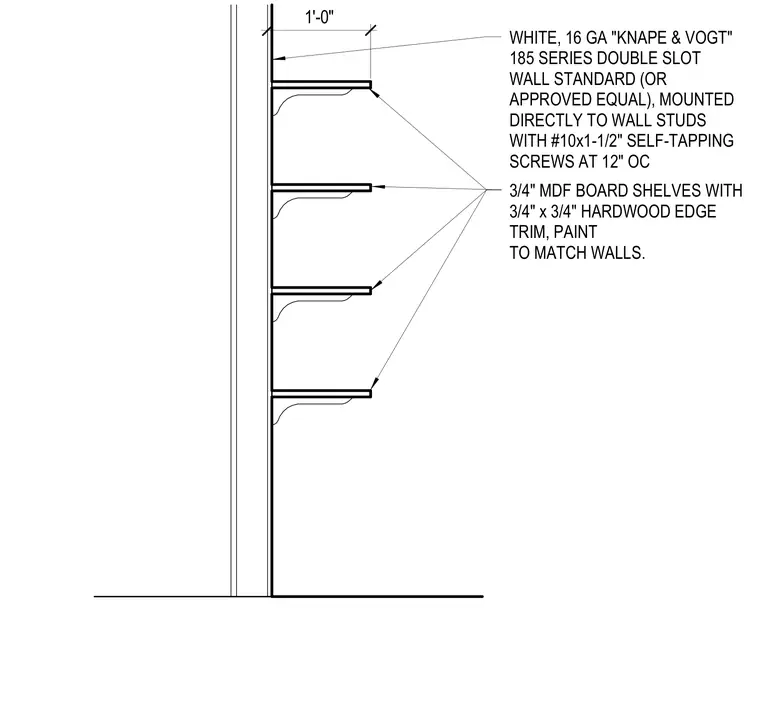

Adjustable open shelves consist of three-quarter-inch medium-density fiberboard boards with three-quarter-inch by three-quarter-inch hardwood edge trim finished with paint to match walls. The shelves mount on white, sixteen-gauge Knape & Vogt 185 series double-slot wall standards or an approved equal. The standards are secured directly to wall studs using number ten by one-and-one-half-inch self-tapping screws spaced at twelve inches on center.
WHITE, 16 GA "KNAPE & VOGT" 185 SERIES DOUBLE SLOT WALL STANDARD (OR APPROVED EQUAL), MOUNTED DIRECTLY TO WALL STUDS WITH #10x1-1/2" SELF-TAPPING SCREWS AT 12" OC 3/4" MDF BOARD SHELVES WITH 3/4" x 3/4" HARDWOOD EDGE TRIM, PAINT TO MATCH WALLS. 1'-0"
