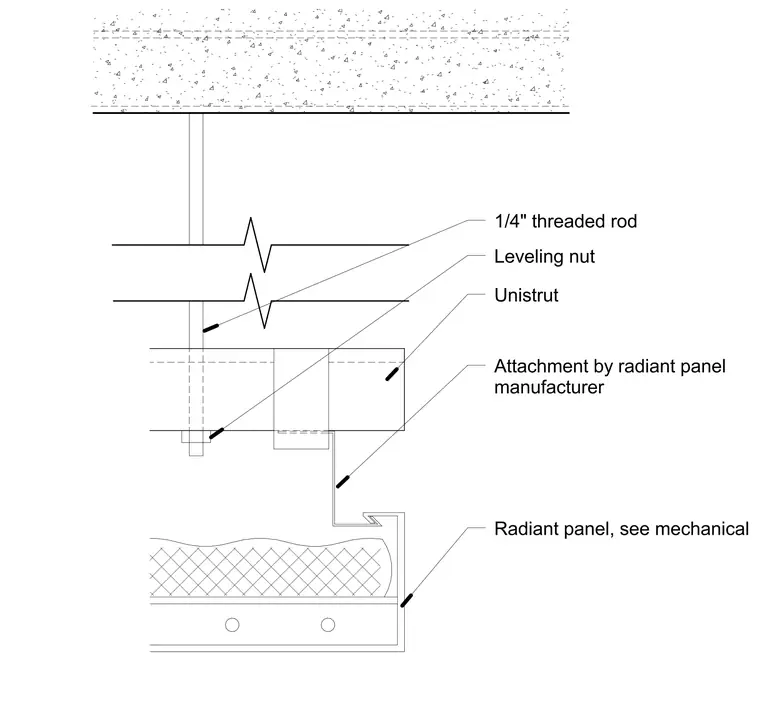

A radiant ceiling panel is suspended from an overhead concrete structure using a one-quarter-inch threaded rod secured by a leveling nut. The threaded rod supports a Unistrut metal framing channel. A proprietary attachment provided by the radiant panel manufacturer connects the Unistrut assembly to the radiant panel unit. The radiant panel itself is coordinated with mechanical drawings.
Radiant panel, see mechanical Attachment by radiant panel manufacturer Unistrut Leveling nut 1/4" threaded rod
