Low Wall Section

Materials

Concrete Steel Cold-formed Steel Timber / Wood Metal (misc.)Gypsum / Drywall

Elements

Walls Floors / Slabs Anchors / Embeds Connections / Plates Roof / Floor Openings

Connections

HSS Connection Welded Connection Bolted Connection

About this detail

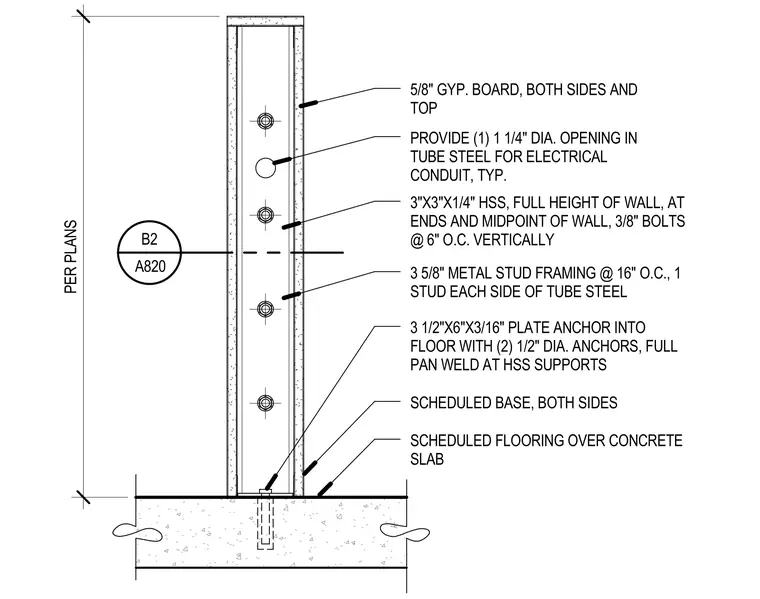

A low interior partition wall is built with 3-and-5/8-inch metal stud framing spaced at 16 inches on center, flanking a 3-by-3-by-1/4-inch hollow structural section tube steel column that runs the full height of the wall at ends and midpoints. The assembly is sheathed with 5/8-inch gypsum board on both sides and the top, and finished with a scheduled base and flooring over a concrete slab. The tube steel includes one 1-and-1/4-inch diameter opening for electrical conduit routing and is secured at the base with a 3-1/2-by-6-by-3/16-inch anchor plate fastened into the floor with two 1/2-inch diameter anchors and a full pan weld. Three-eighths-inch bolts spaced at 6 inches on center vertically connect the framing to the structural tube.
