A one-and-a-half-inch outside diameter stainless steel tube guard rail continues similarly as required along the stair run, mounted above vertical flat bar balusters. The face of the flat bar aligns with the plane change of the steel plate stringer. At the transition to the concrete landing, a steel closure plate finishes the connection, while floor finishes match the architectural finish plans and the concrete landing is detailed per structural requirements.

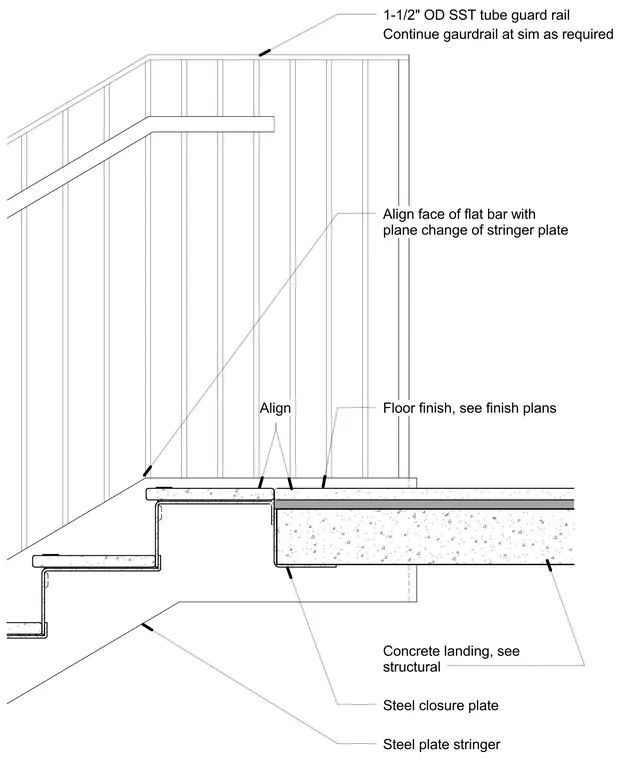

Align 1-1/2" OD SST tube guard rail Align face of flat bar with plane change of stringer plate Continue gaurdrail at sim as required Floor finish, see finish plans Steel plate stringer Concrete landing, see structural Steel closure plate
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
