Plastic laminate is applied over two sheets of plywood for the countertop surface, finished with sealant at joints. The casework features an adjustable shelf supported by standard shelf pins and incorporates pull hardware mounted according to the elevation and specification manual. The cabinet rests on a toe kick base at the floor with an overall height of two feet ten inches.

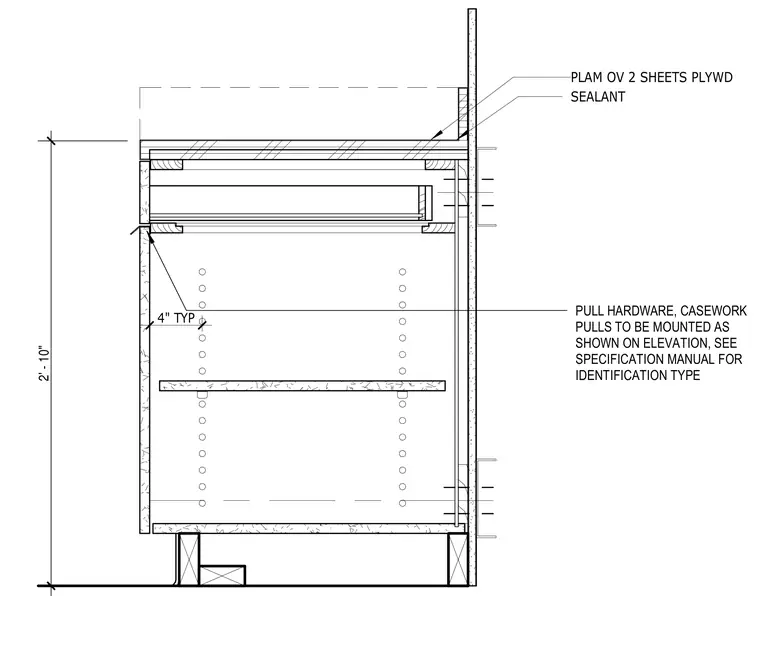

SEALANT 4" TYP PLAM OV 2 SHEETS PLYWD PULL HARDWARE, CASEWORK PULLS TO BE MOUNTED AS SHOWN ON ELEVATION, SEE SPECIFICATION MANUAL FOR IDENTIFICATION TYPE 2' - 10"
