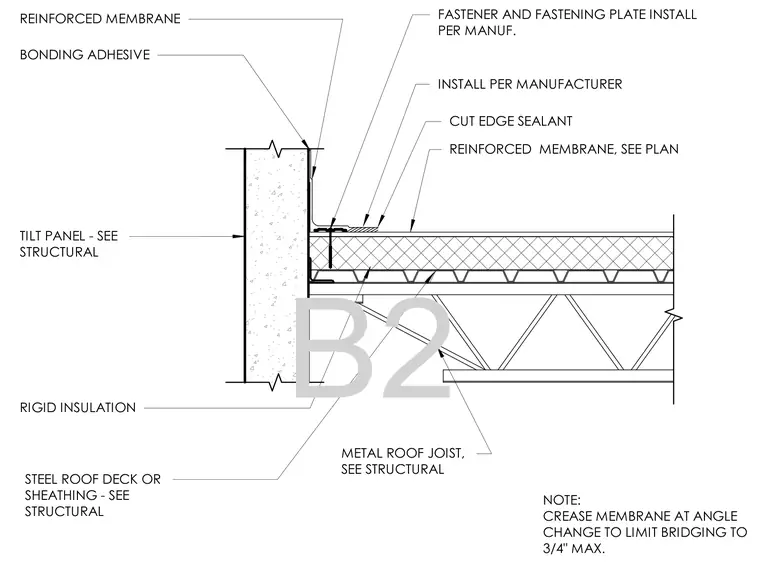

A reinforced roof membrane transitions from the horizontal rigid insulation and steel roof deck up the face of a concrete tilt-up wall panel, secured with mechanical fasteners and fastening plates. Bonding adhesive adheres the reinforced membrane to the substrate, and a cut edge sealant is applied along the membrane termination. A note instructs to crease the membrane at angle changes to limit bridging to three-quarters of an inch maximum. The metal roof joist, steel roof deck or sheathing, and tilt-up panel are sized per structural drawings.
METAL ROOF JOIST, SEE STRUCTURAL TILT PANEL - SEE STRUCTURAL STEEL ROOF DECK OR SHEATHING - SEE STRUCTURAL NOTE: CREASE MEMBRANE AT ANGLE CHANGE TO LIMIT BRIDGING TO 3/4" MAX. BONDING ADHESIVE REINFORCED MEMBRANE FASTENER AND FASTENING PLATE INSTALL PER MANUF. INSTALL PER MANUFACTURER CUT EDGE SEALANT REINFORCED MEMBRANE, SEE PLAN RIGID INSULATION B2
