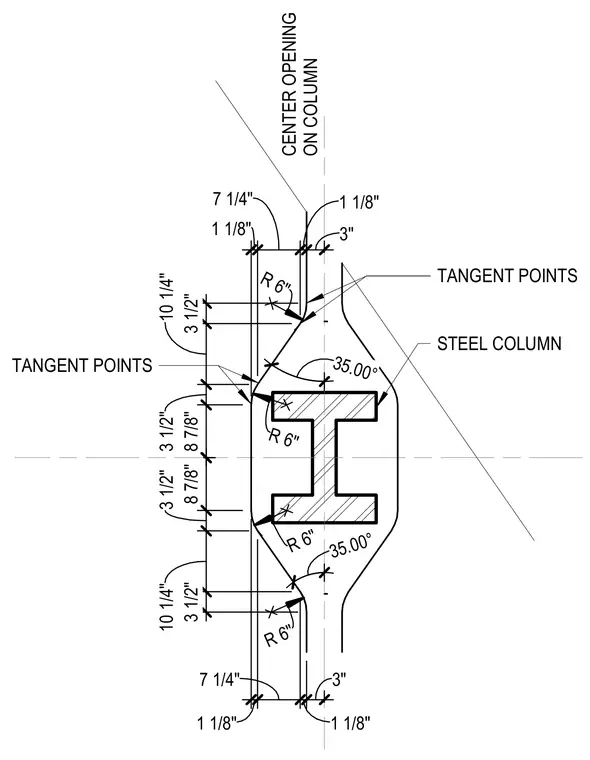

A center opening centers on a steel column with specified radii and angular dimensions. The layout includes 6-inch radii at tangent points with thirty-five degree angles and offset dimensions measuring 3-1/2 inches, 8-7/8 inches, 10-1/4 inches, and 7-1/4 inches. The profile frames the steel column with symmetrical clearances and alignment dimensions on both sides.
CENTER OPENING ON COLUMN STEEL COLUMN R 6 " R 6 " 3 5 . 0 0 ° TANGENT POINTS TANGENT POINTS 3 1 / 2 " 1 0 1 / 4 " 3 1 / 2 " 8 7 / 8 " 1 1 / 8 " 7 1 / 4 " 1 1 / 8 " 3 " 8 7 / 8 " 3 1 / 2 " 1 0 1 / 4 " 3 1 / 2 " 1 1 / 8 " 7 1 / 4 " 1 1 / 8 " 3 " R 6 " R 6 " 3 5 . 0 0 °
