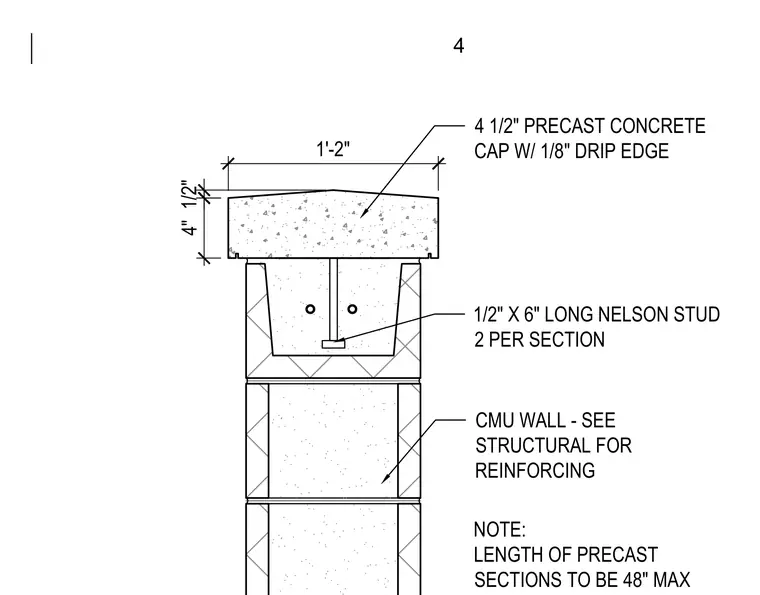

A 4 1/2-inch precast concrete cap with a 1/8-inch drip edge sits atop a concrete masonry unit wall. Two 1/2-inch diameter by 6-inch long Nelson studs anchor the cap into the grouted cell of the masonry wall. The precast sections are limited to a maximum length of 48 inches. Reinforcing for the concrete masonry unit wall is specified per structural drawings.
4 4 1/2" PRECAST CONCRETE CAP W/ 1/8" DRIP EDGE 1/2" X 6" LONG NELSON STUD 2 PER SECTION CMU WALL - SEE STRUCTURAL FOR REINFORCING NOTE: LENGTH OF PRECAST SECTIONS TO BE 48" MAX 1'-2" 1/2" 4"
