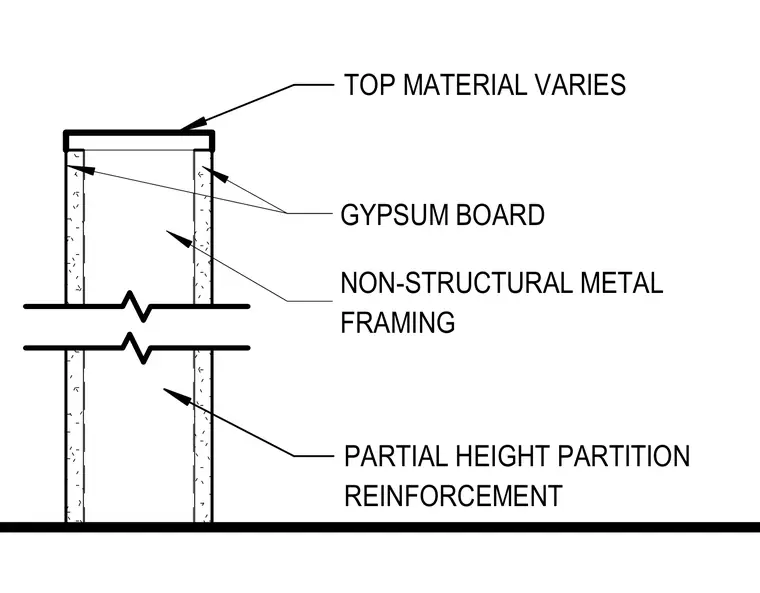

Non-structural metal framing supports gypsum board on both sides of a partial height interior partition. The top of the assembly features variable material finishing capping the stud framing. Additional partition reinforcement is integrated within the lower height of the wall assembly.
NON-STRUCTURAL METAL FRAMING GYPSUM BOARD GYPSUM BOARD PARTIAL HEIGHT PARTITION REINFORCEMENT TOP MATERIAL VARIES
