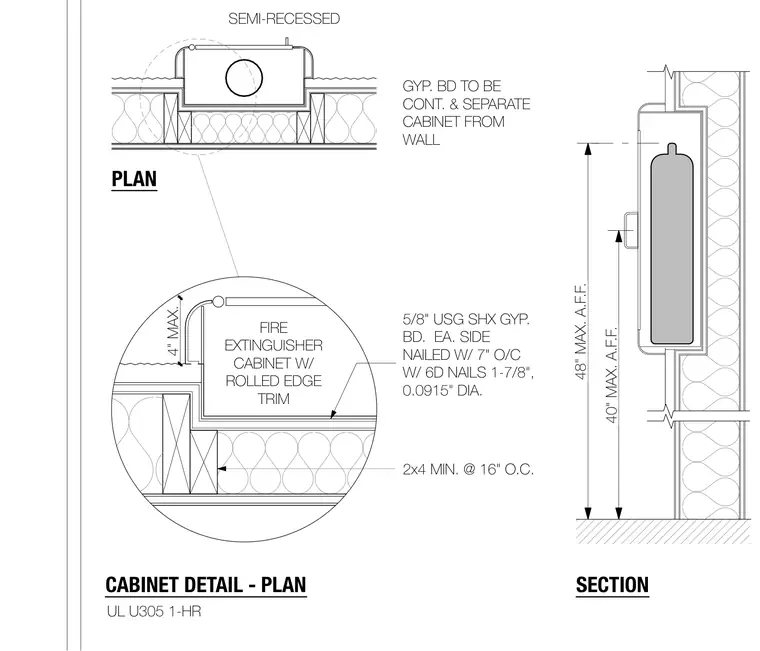

A semi-recessed fire extinguisher cabinet with rolled edge trim is installed within a wood stud wall framing assembly. The partition is constructed using minimum two-by-four wood studs spaced at sixteen inches on center. Five-eighths-inch USG SHX gypsum board is applied to each side, fastened with six-penny nails measuring one and seven-eighths inches long and 0.0915 inches in diameter spaced at seven inches on center. Continuous gypsum board layers maintain the one-hour fire rating of Underwriters Laboratories assembly U305 and separate the cabinet from the wall cavity. The cabinet projects a maximum of four inches from the wall surface and is positioned with the handle at forty inches and the top at forty-eight inches maximum above the finished floor.
SEMI-RECESSED 2x4 MIN. @ 16" O.C. FIRE EXTINGUISHER CABINET W/ ROLLED EDGE TRIM CABINET DETAIL - PLAN PLAN SECTION 5/8" USG SHX GYP. BD. EA. SIDE NAILED W/ 7" O/C W/ 6D NAILS 1-7/8", 0.0915" DIA. UL U305 1-HR GYP. BD TO BE CONT. & SEPARATE CABINET FROM WALL 4" MAX. 40" MAX. A.F.F. 48" MAX. A.F.F.
