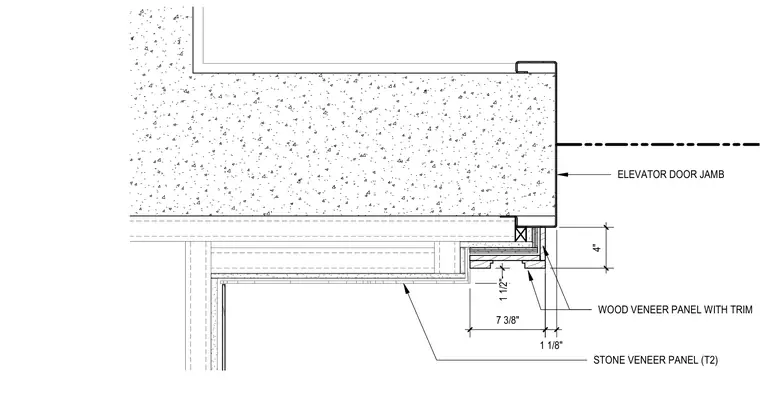

This plan detail shows the interface between an elevator door jamb frame and adjacent interior wall finishes. A wood veneer panel with trim is installed adjacent to the jamb, measuring 7 3/8 inches wide with a 1 1/2 inch projection and a 1 1/8 inch reveal. A stone veneer panel designated T2 wraps along the adjacent partition, with dimensional offsets of 4 inches indicated at the corner junction.
4" 1 1/8" 7 3/8" 1 1/2" WOOD VENEER PANEL WITH TRIM ELEVATOR DOOR JAMB STONE VENEER PANEL (T2)
