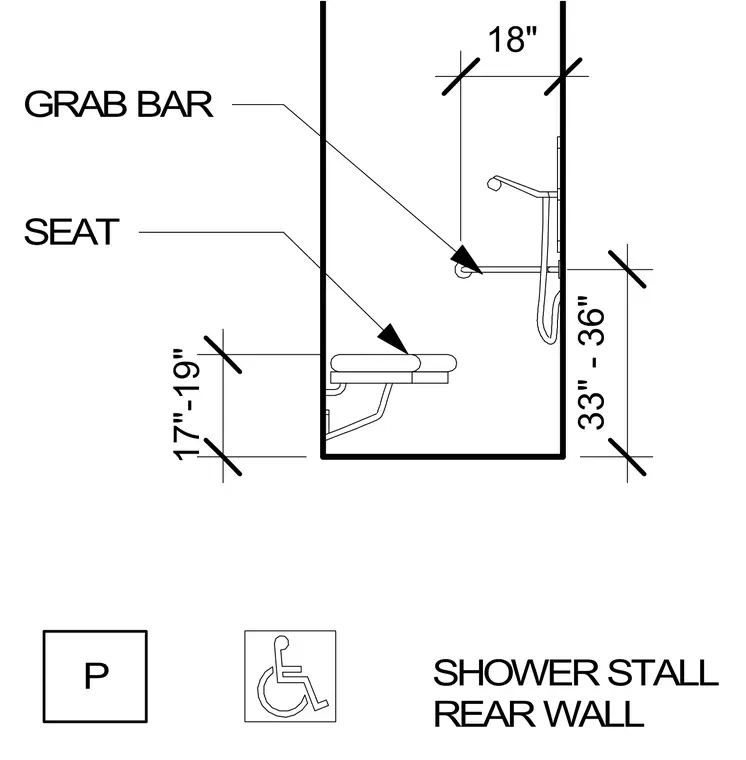

The shower stall rear wall features an L-shaped grab bar mounted at thirty-three to thirty-six inches above the finished floor, positioned eighteen inches from the adjacent wall. A fold-down shower seat is mounted with its top surface set seventeen to nineteen inches above the finished floor.
